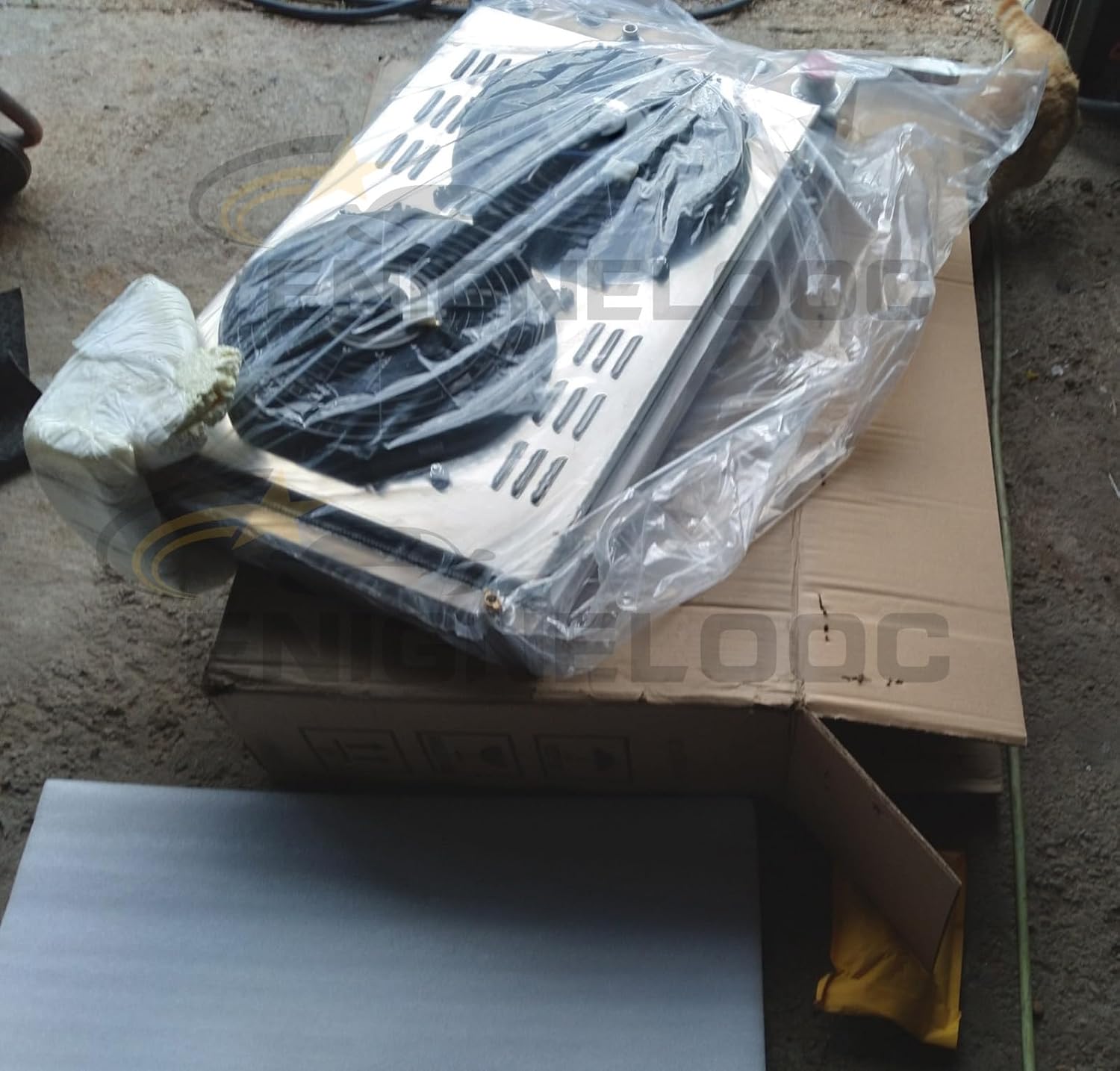

3 Row Aluminum Radiator Shroud Fan Relay for 1965-1990 Chevy C15 C20 C30 GMC Caprice Chevelle Malibu GM Cars Caprice Truck Suburban El Camino Biscayne Buick Blazer Jimmy

Fitment: For Chevy Impala Blazer GMC Jimmy 1973-1980 For Chevy Monte Carlo 1970-77/Chevy Impala 1971-1979 For Chevy K5 K10 Blazer 75-80/Cutlass Supreme 74-77 For Chevy Caprice 1971-1990/Chevelle/GM 28" 66-80 For Cadillac Fleetwood/Brougham 1965-1974 For Chevy Chevelle 1968-1973/Chevy El Camino 1968-1977 For Oldsmobile Delta 1968-1988/Pontiac 1968-1970 For Cadillac Olds Cars / Buick Skylark 67-72 For Olds Cutlass and Cutlass Supreme 66-77 Package Include: (as the pictures shown） 1 X 3-Row AA5052Aluminum Radiator 1 X CNC Machined Radiator Cap 1 X AA5052 Aluminum Shroud 2 X 12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit 12" Fans Details: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050”(blade to blade) Thickness (in): 2.500” Number of Blades: 10 S-Type blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Radiator Configuration: 3-Row of tubes Core Racing Design Trans Cooler: Included- 1/2" 20 STRAIGHT THREAD G1/4 Surface finish: Aircraft 5052 grade aluminum tank & core Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Transmission Oil Cooler: NO Mounting Type : saddle Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans.

• ✅【Product specification】Rows: 3 | Overall Dimensions: 33,66" x 5,5" x 18,5" | Core Dimensions: 28,26" x 14,85" x 1.73" | Inlet Locations & Size: - 1-4/7" Driver Side | Outlet Locations & Size： - 1-1/2" Passenger Side | Trans Cooler: ￠32*215*G1/4(Z)
• ✅【Vehicle compatibility】This brand-new radiator is compatible with 1965-1990 Chevy C15 C20 C30 GMC Caprice Chevelle Malibu GM Cars Caprice Truck Suburban El Camino Biscayne Buick Riviera Olds Cutlass Cadillac Oldsmobile Blazer Jimmy.
• ✅【High performance】Come with 3-Row of tubes Core racing design which can improve engine cooling efficiency by 35 - 45% temp, making stronger and higher capacity for coolant than stock.
• ✅【High-quality materials】Radiator is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength.
• ✅【Package Include】1 x 3-Row AA5052 Aluminum Radiator, 1 x CNC Machined Radiator Cap, 1 x AA5052 Aluminum Shroud, 2 x 12" Fans (Includes mounting kits), 1 x Thermostat Relay Kit
